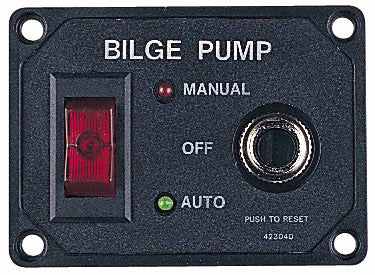

Sea-Dog Bilge Pump Panel With Circuit Breaker (423040-1)

The deluxe Bilge Pump Panel features a three-way switch, allowing both automatic and manual switching of the bilge pump. When operated in the Manual mode, a red LED light is activated. When in the Automatic mode, a green LED light is activated. In addition, the panel is designed so the words “Bilge Pump" will illuminate when back lit, allowing for easy location and operation at night. Includes UL listed 20A circuit breaker, allowing quick and easy resetting of the system. Additional breaker sizes available (420805-420830). Constructed of injection molded ABS for maximum durability and corrosion resistance. Installs with four #6 RH fasteners (not included).

Material: Injection Molded ABS

Specifications

• A: 2-3/16"
• B: 3"
• C: 1-11/16"
• D: 2-1/4"
• Volts: 12
• Fastener: #6 RH

Manufacturer Part Number: 423040-1
