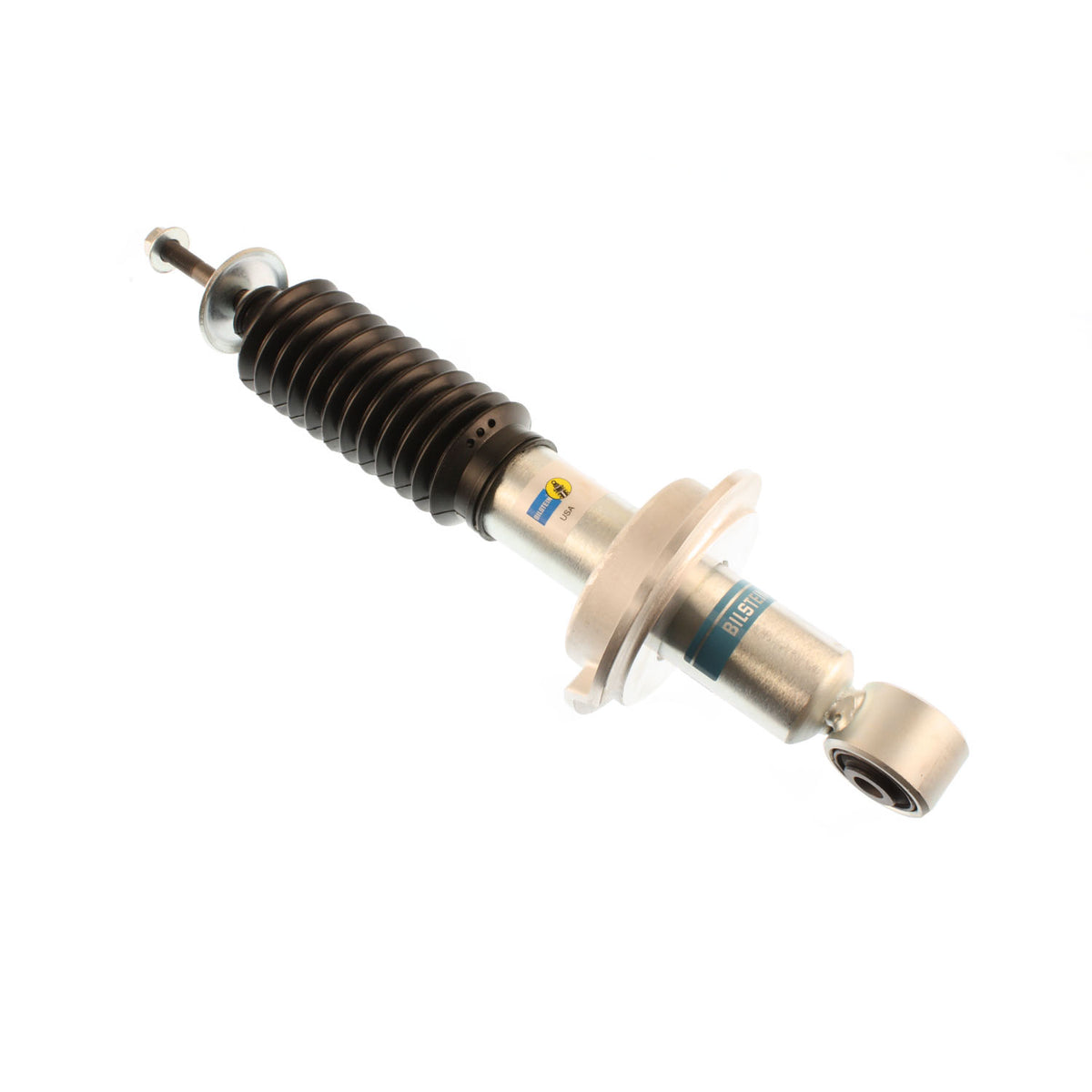

Bilstein B8 5100 Ride Height Adjustable Front Shock Absorber (24-197649)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75in of lift, depending on the application

Product details

• Adjustable Damping: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: Black Bellows
• Collapsed Length (IN): 11.19
• Collapsed Length (MM): 284.2
• Extended Length (IN): 15.43
• Extended Length (MM): 392.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.2mm
• Piston Diameter: 46mm
• Reservoir: No

Use the vehicle selector to confirm fitment for your application before ordering.
