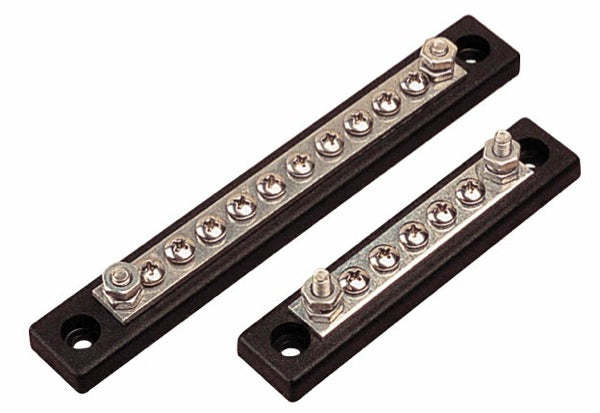

Sea-Dog Bus Bar Screw-Terminal Block (426710-1)

This Bus Bar Screw-Terminal Block is equipped with two each #10-24 studs for main wire connection. Designed for use with tinned copper marine wire which shares the same expansion rate to prevent loosening wires and reducing electrolytic corrosion caused by pairing two disparate metals. Constructed of tin plated brass and ABS. Installs with two #10 RH fasteners (not included). Maximum: 48VDC, 100 amps. #8-32 terminals.

Material: Tin Plated Brass/ABS

Specifications

• Terminals: 5 x #8-32
• A: 4-3/16"
• B: 7/8"
• C: 1-3/8"
• D: 3-7/16"
• Max. Amps: 100
• Fastener: #10 RH

Manufacturer Part Number: 426710-1
