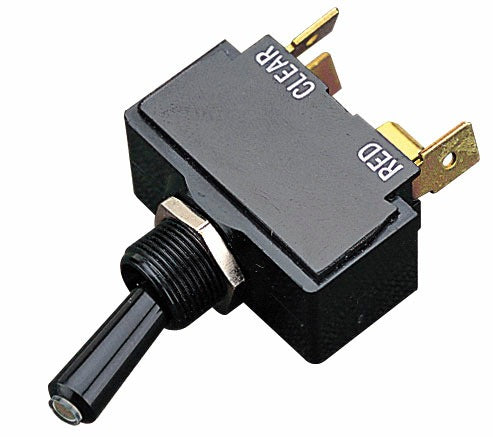

Sea-Dog Light Tip Toggle Switch (420121-1)

These Light Tip Toggle Switches feature a locking ring and lever seal to resist water penetration. Toggle bat features a lighted tip which is white in the OFF position and red in the ON position. Fits panels up to 1/4" thick and requires a 15/32" mounting hole. Easy installation. Constructed of stamped brass and injection molded nylon with a polycarbonate toggle. 15A @ 12VDC.

Material: Stamped Brass/Injection Molded Nylon/Polycarbonate

Specifications

• Circuit: SPST
• Action: On/Off
• Terminals: 4 Blades
• Amps: 15
• Volts: 12
• A: 3/8"
• B: 1/2"

Manufacturer Part Number: 420121-1
