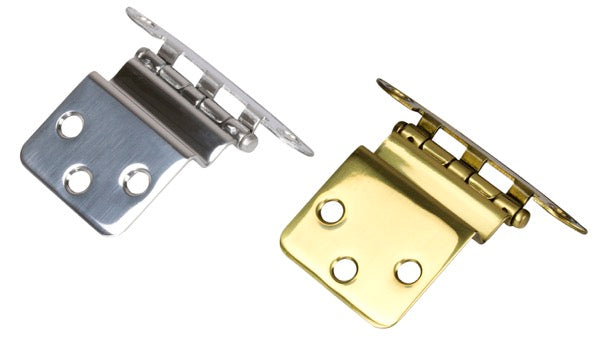

Sea-Dog Offset Semi-Concealed Hinge (201914-1)

Offset Semi-Concealed Hinges are mounted on the back surface of a door with a corresponding 3/8" offset mortised into the edge of the door. Note: 201916(-1) has 9/16" distance from center pin. Constructed of corrosion resistant stamped 304 stainless steel or polished brass. Installs with five #6 RH screws (not included).

Material: Stamped 304 Stainless Steel or Polished Brass

Specifications

• A: 2-3/16"
• B: 2-3/4"
• C: 1/16"
• D: 1-1/2"
• E (Off-Set Depth): 3/8"
• F (Pin Offset): 1/2"
• Material: Stainless

Manufacturer Part Number: 201914-1
