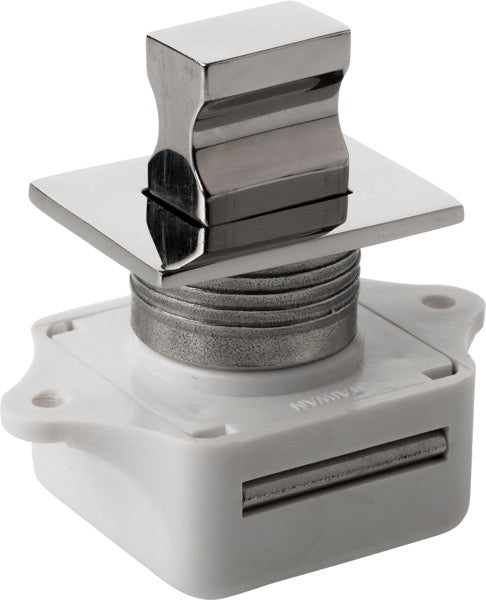

Sea-Dog Push Button Rim Latch, Square (225310-1)

Push Button Rim Latch housings feature a streamlined, positive action closure, ensuring cabinets and drawers stay closed until the button is deliberately pushed. Suitable for left-side or right-side use. Mortise mount for a sleek, finished appearance. Constructed of sturdy plastic with a corrosion resistant 304 stainless steel knob. Latch installs with two #6 RH fasteners, strike plates require two #4 FH fasteners (fasteners not included). Display version comes with both flat and 90° strike plates for inset or overlay mounting. When ordering bulk, please order strike plates (224320 flat, or 224321 90°) separately. Hole spacing on flat strike plate (224320) is 1-7/8". Hole spacing on 90° strike plate (224321) is 1-3/16". For OEM applications, varying combinations of rosette/buttons are available.

Material: Stainless Steel/Plastic Housing

Specifications

• A: 1-15/16"
• B: 1-7/8"
• C: 2-1/16"
• D: 1"
• Max. Door Thickness: 1"
• Finish: Stainless
• Fastener: #6 RH

Manufacturer Part Number: 225310-1
