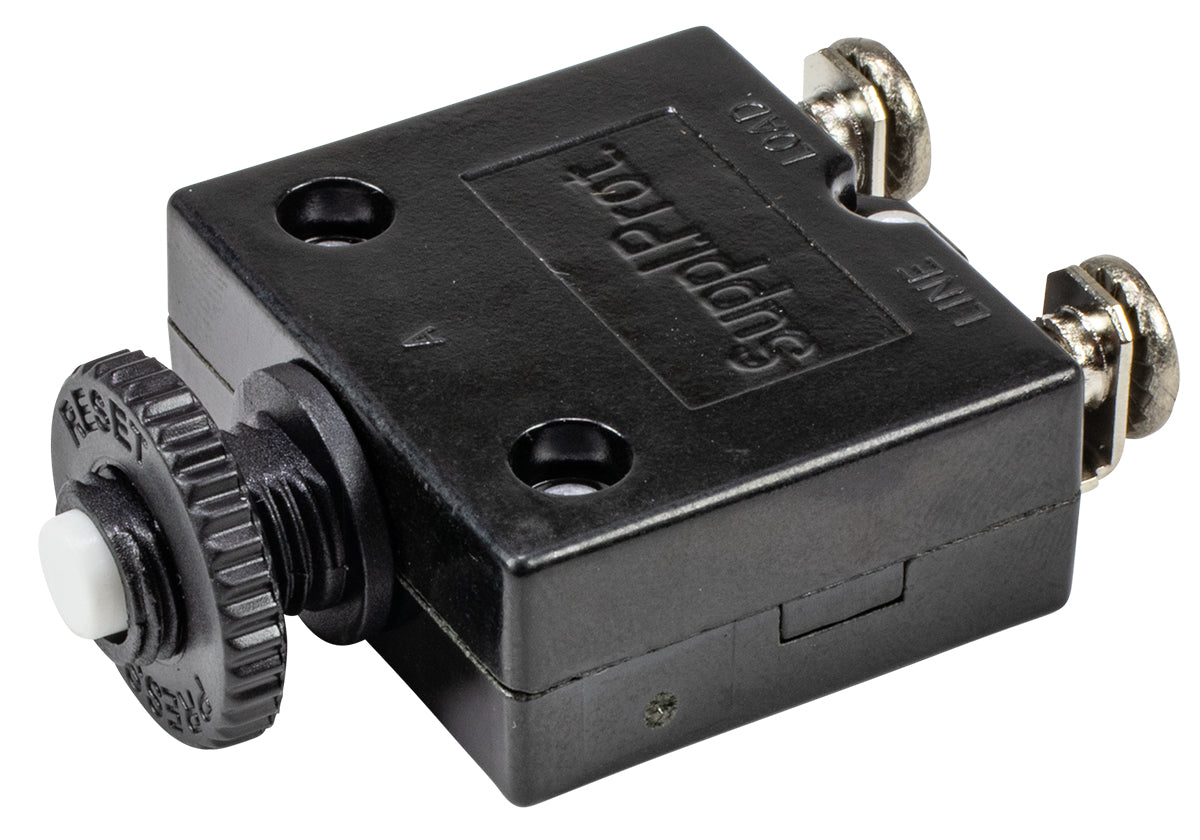

Sea-Dog Sd-13 Circuit Breaker, Reset Only, Screw Terminal (830117)

SD-13 Circuit Breakers are designed to protect an electrical circuit from damage caused by excess current. Unlike fuses, breakers have the advantage of being reset after tripping. Optional Breaker Boot (830901) provides additional protection in wet environments. Panel mounted, compact design. Screw Terminals: #8-32. Range: 3A-40A. Maximum Voltage: 250VAC/50VDC. Amperage Interrupt Capacity (AIC): 1kA, 250VAC, C1 and 0.3kA, 50VDC, C1 (UL 1077). Ignition Protected: UL1500 (per Title 33 Chapter I, Part 183, Subparts I and J, of the CFR). UL/cUL Recognized per UL 1077 (E66224).

Material: Stamped Brass/Molded Bakelite

Specifications

• Amps: 30
• A: 1-3/8"
• B: 7/16"
• C: 1-1/4"
• D: 9/16"
• Button Color: White
• Panel Depth: 3/16"

Manufacturer Part Number: 830117
