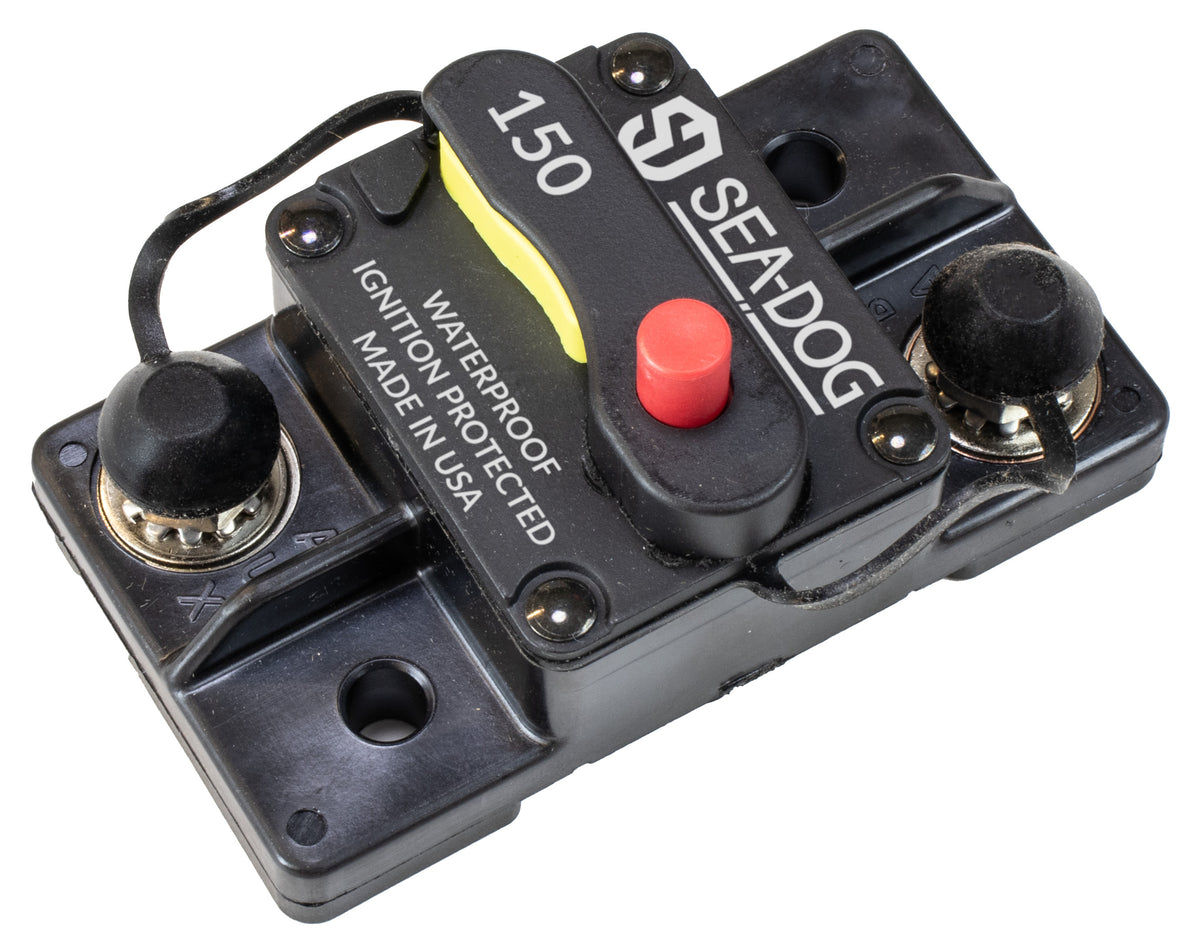

Sea-Dog Sd-17 Circuit Breaker, Surface Mount (830222)

These Hi-Amp Resettable Thermal Circuit Breakers provide a visible indication of tripped condition. Surface mounted, water resistant and sealed for engine compartment and bilge area applications. Terminal Studs: ¼”-28. Range: 25A-150A. Maximum Voltage: 48 VDC. Amperage Interrupt Capacity (AIC): 3,000A @ 14VDC, 1,500A @ 48VDC per SAE J1625, ABYC-E11, UL1077*. Ignition Protected: SAE J1171. Ingress Protection: IP67. Made in the USA.

Material: Stainless Steel Studs & Washers/Thermoset Plastic

Specifications

• Amps: 40
• A: 2-7/8"
• B: 1-7/8"
• C: 1-3/4"
• D: 2-3/16"
• E: 1-1/8"
• Volts: 48

Manufacturer Part Number: 830222
