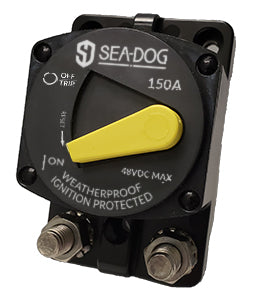

Sea-Dog Sd-87 Circuit Breaker, Surface Mount (830522)

These Hi-Amp Resettable Circuit Breakers provide a visible indication of tripped condition. Surface mounted, water resistant and sealed for engine compartment and bilge area applications. Terminal Studs: 5/16”-18. Range: 25A-200A. Maximum Voltage: 48VDC. Amperage Interrupt Capacity (AIC): 5000A@14VDC, 3000A@28VDC, 1500A@48VDC per SAE J553, ABYC-E11, UL1077. Ignition Protected: SAE J1171. Ingress Protection: IP66. Made in the USA.

Material: Stainless Steel Studs & Washers/Thermoset Plastic

Specifications

• Amps: 40
• A: 3-1/2"
• B: 2-1/4"
• C: 1-15/16"
• D: 2-9/16"
• E: 1-5/8"
• Volts: 48

Manufacturer Part Number: 830522
