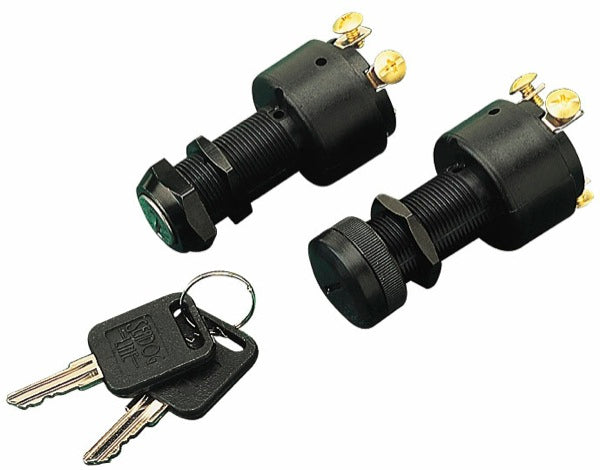

Sea-Dog Three Position Ignition Switch (420366-1)

These Three Position Ignition Switches are used for off, ignition, and start functions. 13/16" diameter shaft is available in short shaft (maximum panel thickness: 5/8”) or long shaft (maximum panel thickness: 1-1/8”) versions. Three screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Constructed of polypropylene. Includes two keys. Available with or without rubber boot.

Material: Polypropylene

Specifications

• Action: Off-Ignition-Start
• A: 13/16"
• Max. Panel: 5/8"
• Shaft Type: Short
• Terminals: 3 Screws
• Cap: Yes

Manufacturer Part Number: 420366-1
