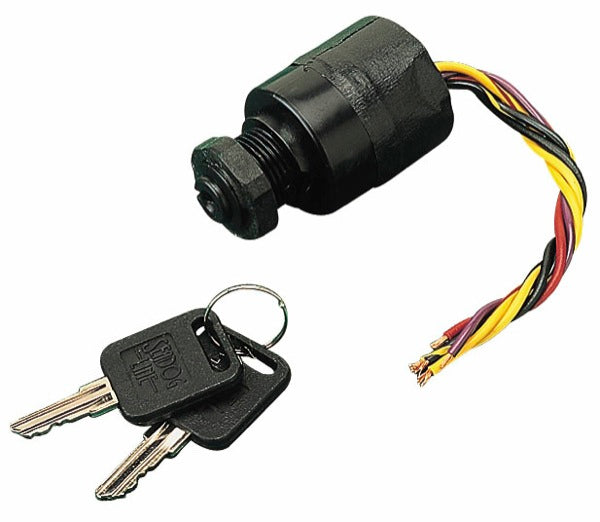

Sea-Dog Three Position Ignition Switch-Magneto Style (420383-1)

This Three Position Magneto Style Ignition Switch is used for off, ignition, start, and choke functions. 13/16" diameter short shaft for a maximum panel thickness: 5/8”. Six wire electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Choke: 7A @ 12VDC. Constructed of polypropylene. Includes two keys. Push to choke.

Material: Polypropylene

Specifications

• Action: Off-Ign.-Start-Choke
• A: 13/16"
• Max. Panel: 5/8"
• Shaft Type: Short
• Terminals: 6 Wires
• Cap: No

Manufacturer Part Number: 420383-1
